VyOS High Availability (HA) Deployment on Azure

This document describes how to deploy VyOS in a High Availability (HA) configuration on Azure using Terraform and Azure Route Server to provide sub-second failover.

Why Use HA on Azure?

This module provides a robust, repeatable foundation for building resilient network architectures in Azure. By combining VyOS routing features with Terraform and Azure-native services, it enables:

  • Rapid deployment of cloud edge routers.

  • Full control over BGP route advertisement and filtering.

  • Realistic HA and disaster recovery simulations.

  • Seamless integration with hybrid or multi-cloud infrastructure.

The architecture includes:

  • Two VyOS routers in a Transit VNet, configured with BGP.

  • Azure Route Server for dynamic route distribution.

  • Site-to-Site VPN connections to a simulated on-premises VyOS router.

  • An Ubuntu VM for connectivity and routing validation.

  • A Data VNet for testing and diagnostics.

Key Features

  • High Availability: Dual VyOS routers for redundancy and failover.

  • Dynamic Routing: BGP-based routing via Azure Route Server.

  • Hybrid Connectivity: Site-to-Site VPN integration with a simulated on-prem VyOS.

  • Testing Environment: Includes Ubuntu VM for verification and diagnostics.

  • Modular & Flexible: Easily configurable via variables.

HA Architecture Diagram

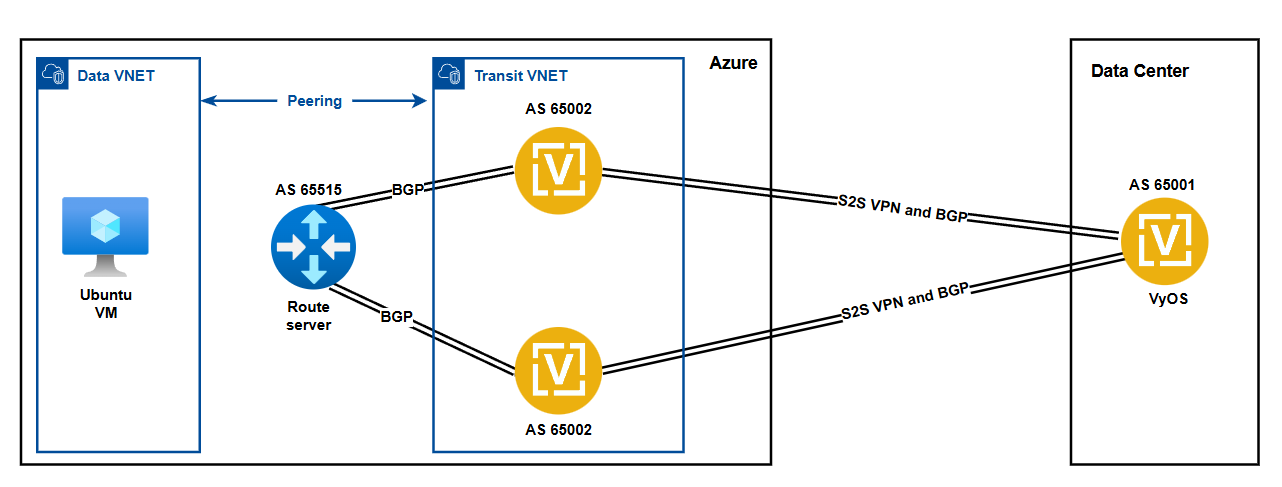

VyOS HA topology diagram

This deployment architecture simulates a real-world enterprise network scenario for testing and validation purposes.

Terraform Automation

To streamline and standardize the process, we developed a Terraform project that automates the deployment of VyOS in High Availability (HA) mode on Azure.

This Terraform project automates the deployment of:

  • Two VyOS instances in HA mode.

  • Azure Route Server.

  • A Transit VNet and a Data VNet containing a test Ubuntu VM for connectivity validation.

Prerequisites

Ensure you have:

  • Active Azure subscription:

az account set --subscription "<subscription ID or name>"

az version
az login

  • Azure Resource Group (RG) created:

az group create --name demoResourceGroup --location westus
az group list
az group show --name demoResourceGroup

ssh-keygen -t rsa -b 4096 -f keys/vyos_custom_key.pem
chmod 400 keys/vyos_custom_key.pem

Usage

All variables are defined in variables.tf. Adjust them to match your environment.

Terraform Workflow:

terraform init
terraform fmt
terraform validate
terraform plan
terraform apply

On completion, run:

terraform output

This displays the management IP and connectivity test results.

To clean up:

terraform destroy

Management

SSH into VyOS:

ssh adminuser@<vyos_public_ip> -i keys/vyos_custom_key.pem

GitHub Repository

You can clone or download the Terraform project and use them in your environment:

https://github.com/vyos/vyos-automation/tree/main/Terraform/Azure/azure-ha-deployment-with-configs
