IPsec Site-to-Site VPN

IPsec Site-to-Site VPN Types

VyOS supports two types of IPsec VPN: Policy-based IPsec VPN and Route-based IPsec VPN.

Policy-based VPN

Policy-based VPN is based on static configured policies. Each policy creates individual IPSec SA. Traffic matches these SAs encrypted and directed to the remote peer.

Route-Based VPN

Route-based VPN is based on secure traffic passing over Virtual Tunnel Interfaces (VTIs). This type of IPsec VPNs allows using routing protocols.

Configuration Site-to-Site VPN

Requirements and Prerequisites for Site-to-Site VPN

Negotiated parameters that need to match

Phase 1

IKE version
Authentication
Encryption
Hashing
PRF
Lifetime

Note

Strongswan recommends to use the same lifetime value on both peers

Phase 2

Encryption
Hashing
PFS
Mode (tunnel or transport)
Lifetime

Note

Strongswan recommends to use the same lifetime value on both peers

Remote and Local networks in SA must be compatible on both peers

Configuration Steps for Site-to-Site VPN

The next example shows the configuration one of the router participating in IPsec VPN.

Tunnel information:

Phase 1:
- encryption: AES256
- hash: SHA256
- PRF: SHA256
- DH: 14
- lifetime: 28800
Phase 2:
- IPsec mode: tunnel
- encryption: AES256
- hash: SHA256
- PFS: inherited from DH Phase 1
- lifetime: 3600
If Policy based VPN is used
- Remote network is 192.168.50.0/24. Local network is 192.168.10.0/24
If Route based VPN is used
- IP of the VTI interface is 10.0.0.1/30

Note

We do not recommend using policy-based vpn and route-based vpn configurations to the same peer.

1. Configure ike-group (IKE Phase 1)

set vpn ipsec ike-group IKE close-action 'start'
set vpn ipsec ike-group IKE key-exchange 'ikev1'
set vpn ipsec ike-group IKE lifetime '28800'
set vpn ipsec ike-group IKE proposal 10 dh-group '14'
set vpn ipsec ike-group IKE proposal 10 encryption 'aes256'
set vpn ipsec ike-group IKE proposal 10 hash 'sha256'
set vpn ipsec ike-group IKE proposal 10 prf 'prfsha256'

2. Configure ESP-group (IKE Phase 2)

set vpn ipsec esp-group ESP lifetime '3600'
set vpn ipsec esp-group ESP mode 'tunnel'
set vpn ipsec esp-group ESP pfs 'enable'
set vpn ipsec esp-group ESP proposal 10 encryption 'aes256'
set vpn ipsec esp-group ESP proposal 10 hash 'sha256'

3. Specify interface facing to the protected destination.

set vpn ipsec interface eth0

4. Configure PSK keys and authentication ids for this key if authentication type is PSK

set vpn ipsec authentication psk PSK-KEY id '192.168.0.2'
set vpn ipsec authentication psk PSK-KEY id '192.168.5.2'
set vpn ipsec authentication psk PSK-KEY secret 'vyos'

To set base64 secret encode plaintext password to base64 and set secret-type

echo -n "vyos" | base64
dnlvcw==

set vpn ipsec authentication psk PSK-KEY secret 'dnlvcw=='
set vpn ipsec authentication psk PSK-KEY secret-type base64

5. Configure peer and apply IKE-group and esp-group to peer.

set vpn ipsec site-to-site peer PEER1 authentication local-id '192.168.0.2'
set vpn ipsec site-to-site peer PEER1 authentication mode 'pre-shared-secret'
set vpn ipsec site-to-site peer PEER1 authentication remote-id '192.168.5.2'
set vpn ipsec site-to-site peer PEER1 connection-type 'initiate'
set vpn ipsec site-to-site peer PEER1 default-esp-group 'ESP'
set vpn ipsec site-to-site peer PEER1 ike-group 'IKE'
set vpn ipsec site-to-site peer PEER1 local-address '192.168.0.2'
set vpn ipsec site-to-site peer PEER1 remote-address '192.168.5.2'

Peer selects the key from step 4 according to local-id/remote-id pair.

6. Depends to vpn type (route-based vpn or policy-based vpn).

6.1 For Policy-based VPN configure SAs using tunnel command specifying remote and local networks.
set vpn ipsec site-to-site peer PEER1 tunnel 1 local prefix '192.168.10.0/24'
set vpn ipsec site-to-site peer PEER1 tunnel 1 remote prefix '192.168.50.0/24'
6.2 For Route-based VPN create VTI interface, set IP address to this interface and bind this interface to the vpn peer.
set interfaces vti vti1 address 10.0.0.1/30
set vpn ipsec site-to-site peer PEER1 vti bind vti1
set vpn ipsec options disable-route-autoinstall
Create routing between local networks via VTI interface using dynamic or static routing.
set protocol static route 192.168.50.0/24 next-hop 10.0.0.2

Initiator and Responder Connection Types

In Site-to-Site IPsec VPN it is recommended that one peer should be an initiator and the other - the responder. The initiator actively establishes the VPN tunnel. The responder passively waits for the remote peer to establish the VPN tunnel. Depends on selected role it is recommended select proper values for close-action and DPD action.

The result of wrong value selection can be unstable work of the VPN.

Duplicate CHILD SA creation.
None of the VPN sides initiates the tunnel establishment.

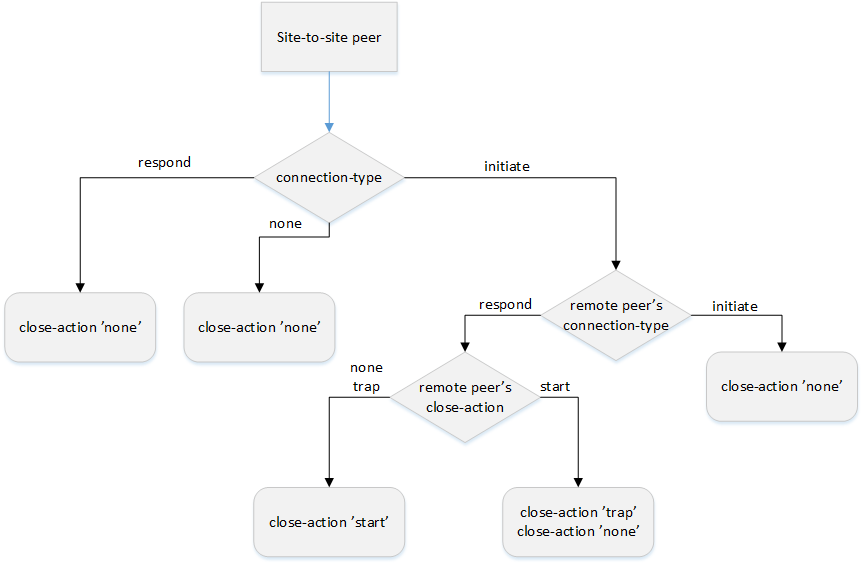

Below flow-chart could be a quick reference for the close-action combination depending on how the peer is configured.

../../../_images/IPSec_close_action_settings.png

Similar combinations are applicable for the dead-peer-detection.

Detailed Configuration Commands

PSK Key Authentication

set vpn ipsec authentication psk <name> dhcp-interface

ID for authentication generated from DHCP address dynamically.

set vpn ipsec authentication psk id <id>

static ID’s for authentication. In general local and remote address <x.x.x.x>, <h:h:h:h:h:h:h:h> or %any.

set vpn ipsec authentication psk secret <secret>

A predefined shared secret used in configured mode pre-shared-secret. Base64-encoded secrets are allowed if secret-type base64 is configured.

set vpn ipsec authentication psk secret-type <type>

Specifies the secret type:

plaintext - Plain text type (default value).
base64 - Base64 type.

Peer Configuration

Peer Authentication Commands

set vpn ipsec site-to-site peer <name> authentication mode <mode>

Mode for authentication between VyOS and remote peer:

pre-shared-secret - Use predefined shared secret phrase.
rsa - Use simple shared RSA key.
x509 - Use certificates infrastructure for authentication.

set vpn ipsec site-to-site peer <name> authentication local-id <id>

ID for the local VyOS router. If defined, during the authentication it will be send to remote peer.

set vpn ipsec site-to-site peer <name> authentication remote-id <id>

ID for remote peer, instead of using peer name or address. Useful in case if the remote peer is behind NAT or if mode x509 is used.

set vpn ipsec site-to-site peer <name> authentication rsa local-key <key>

Name of PKI key-pair with local private key.

set vpn ipsec site-to-site peer <name> authentication rsa remote-key <key>

Name of PKI key-pair with remote public key.

set vpn ipsec site-to-site peer <name> authentication rsa passphrase <passphrase>

Local private key passphrase.

set vpn ipsec site-to-site peer <name> authentication use-x509-id <id>

Use local ID from x509 certificate. Cannot be used when id is defined.

set vpn ipsec site-to-site peer <name> authentication x509 ca-certificate <name>

Name of CA certificate in PKI configuration. Using for authenticating remote peer in x509 mode.

set vpn ipsec site-to-site peer <name> authentication x509 certificate <name>

Name of certificate in PKI configuration, which will be used for authenticating local router on remote peer.

set vpn ipsec authentication x509 passphrase <passphrase>

Private key passphrase, if needed.

Global Peer Configuration Commands

set vpn ipsec site-to-site peer <name> connection-type <type>

Operational mode defines how to handle this connection process.

initiate - does initial connection to remote peer immediately after configuring and after boot. In this mode the connection will not be restarted in case of disconnection, therefore should be used only together with DPD or another session tracking methods.
respond - does not try to initiate a connection to a remote peer. In this mode, the IPsec session will be established only after initiation from a remote peer. Could be useful when there is no direct connectivity to the peer due to firewall or NAT in the middle of the local and remote side.
none - loads the connection only, which then can be manually initiated or used as a responder configuration.

set vpn ipsec site-to-site peer <name> default-esp-group <name>

Name of ESP group to use by default for traffic encryption. Might be overwritten by individual settings for tunnel or VTI interface binding.

set vpn ipsec site-to-site peer <name> description <description>

Description for this peer.

set vpn ipsec site-to-site peer <name> dhcp-interface <interface>

Specify the interface which IP address, received from DHCP for IPSec connection with this peer, will be used as local-address.

set vpn ipsec site-to-site peer <name> force-udp-encapsulation

Force encapsulation of ESP into UDP datagrams. Useful in case if between local and remote side is firewall or NAT, which not allows passing plain ESP packets between them.

set vpn ipsec site-to-site peer <name> ike-group <name>

Name of IKE group to use for key exchanges.

set vpn ipsec site-to-site peer <name> local-address <address>

Local IP address for IPsec connection with this peer. If defined any, then an IP address which configured on interface with default route will be used.

set vpn ipsec site-to-site peer <name> remote-address <address>

Remote IP address or hostname for IPsec connection. IPv4 or IPv6 address is used when a peer has a public static IP address. Hostname is a DNS name which could be used when a peer has a public IP address and DNS name, but an IP address could be changed from time to time.

set vpn ipsec site-to-site peer <name> replay-window <size>

IPsec replay window to configure for CHILD_SAs (default: 32), a value of 0 disables IPsec replay protection.

set vpn ipsec site-to-site peer <name> virtual-address <address>

Defines a virtual IP address which is requested by the initiator and one or several IPv4 and/or IPv6 addresses are assigned from multiple pools by the responder. The wildcard addresses 0.0.0.0 and :: request an arbitrary address, specific addresses may be defined.

CHILD SAs Configuration Commands

Policy-Based CHILD SAs Configuration Commands

Every configured tunnel under peer configuration is a new CHILD SA.

set vpn ipsec site-to-site peer <name> tunnel <number> disable

Disable this tunnel.

set vpn ipsec site-to-site peer <name> tunnel <number> esp-group <name>

Specify ESP group for this CHILD SA.

set vpn ipsec site-to-site peer <name> tunnel <number> priority <number>

Priority for policy-based IPsec VPN tunnels (lowest value more preferable).

set vpn ipsec site-to-site peer <name> tunnel <number> protocol <name>

Define the protocol for match traffic, which should be encrypted and send to this peer.

set vpn ipsec site-to-site peer <name> tunnel <number> local prefix <network>

IP network at the local side.

set vpn ipsec site-to-site peer <name> tunnel <number> local port <number>

Local port number. Have effect only when used together with prefix.

set vpn ipsec site-to-site peer <name> tunnel <number> remote prefix <network>

IP network at the remote side.

set vpn ipsec site-to-site peer <name> tunnel <number> remote port <number>

Remote port number. Have effect only when used together with prefix.

Route-Based CHILD SAs Configuration Commands

To configure route-based VPN it is enough to create vti interface and bind it to the peer. Any traffic, which will be send to VTI interface will be encrypted and send to this peer. Using VTI makes IPsec configuration much flexible and easier in complex situation, and allows to dynamically add/delete remote networks, reachable via a peer, as in this mode router don’t need to create additional SA/policy for each remote network.

Warning

When using site-to-site IPsec with VTI interfaces, be sure to disable route autoinstall.

set vpn ipsec options disable-route-autoinstall

set vpn ipsec site-to-site peer <name> vti bind <interface>

VTI interface to bind to this peer.

set vpn ipsec site-to-site peer <name> vti esp-group <name>

ESP group for encrypt traffic, passed this VTI interface.

Traffic-selectors parameters for traffic that should pass via vti interface.

set vpn ipsec site-to-site peer <name> vti traffic-selector local prefix <network>

Local prefix for interesting traffic.

set vpn ipsec site-to-site peer <name> vti traffic-selector remote prefix <network>

Remote prefix for interesting traffic.

IPsec Op-mode Commands

show vpn ike sa

Shows active IKE SAs information.

show vpn ike secrets

Shows configured authentication keys.

show vpn ike status

Shows Strongswan daemon status.

show vpn ipsec connections

Shows summary status of all configured IKE and IPsec SAs.

show vpn ipsec sa [detail]

Shows active IPsec SAs information.

show vpn ipsec status

Shows status of IPsec process.

show vpn ipsec policy

Shows the in-kernel crypto policies.

show vpn ipsec state

Shows the in-kernel crypto state.

show log ipsec

Shows IPsec logs.

reset vpn ipsec site-to-site all

Clear all ipsec connection and reinitiate them if VyOS is configured as initiator.

reset vpn ipsec site-to-site peer <name>

Clear all peer IKE SAs with IPsec SAs and reinitiate them if VyOS is configured as initiator.

reset vpn ipsec site-to-site peer <name> tunnel <number>

Clear scpecific IPsec SA and reinitiate it if VyOS is configured as initiator.

reset vpn ipsec site-to-site peer <name> vti <number>

Clear IPsec SA which is map to vti interface of this peer and reinitiate it if VyOS is configured as initiator.

restart ipsec

Restart Strongswan daemon.

Examples:

Policy-Based VPN Example

PEER1:

WAN interface on eth0
eth0 interface IP: 10.0.1.2/30
dum0 interface IP: 192.168.0.1/24 (for testing purposes)
Initiator

PEER2:

WAN interface on eth0
eth0 interface IP: 10.0.2.2/30
dum0 interface IP: 192.168.1.0/24 (for testing purposes)
Responder

# PEER1
set interfaces dummy dum0 address '192.168.0.1/32'
set interfaces ethernet eth0 address '10.0.1.2/30'
set protocols static route 0.0.0.0/0 next-hop 10.0.1.1
set vpn ipsec authentication psk AUTH-PSK id '10.0.1.2'
set vpn ipsec authentication psk AUTH-PSK id '10.0.2.2'
set vpn ipsec authentication psk AUTH-PSK secret 'test'
set vpn ipsec esp-group ESP-GRPOUP lifetime '3600'
set vpn ipsec esp-group ESP-GRPOUP proposal 10 encryption 'aes256'
set vpn ipsec esp-group ESP-GRPOUP proposal 10 hash 'sha1'
set vpn ipsec ike-group IKE-GROUP close-action 'start'
set vpn ipsec ike-group IKE-GROUP dead-peer-detection action 'restart'
set vpn ipsec ike-group IKE-GROUP dead-peer-detection interval '30'
set vpn ipsec ike-group IKE-GROUP dead-peer-detection timeout '120'
set vpn ipsec ike-group IKE-GROUP key-exchange 'ikev1'
set vpn ipsec ike-group IKE-GROUP lifetime '28800'
set vpn ipsec ike-group IKE-GROUP proposal 10 dh-group '14'
set vpn ipsec ike-group IKE-GROUP proposal 10 encryption 'aes256'
set vpn ipsec ike-group IKE-GROUP proposal 10 hash 'sha1'
set vpn ipsec interface 'eth0'
set vpn ipsec site-to-site peer PEER2 authentication local-id '10.0.1.2'
set vpn ipsec site-to-site peer PEER2 authentication mode 'pre-shared-secret'
set vpn ipsec site-to-site peer PEER2 authentication remote-id '10.0.2.2'
set vpn ipsec site-to-site peer PEER2 connection-type 'initiate'
set vpn ipsec site-to-site peer PEER2 default-esp-group 'ESP-GRPOUP'
set vpn ipsec site-to-site peer PEER2 ike-group 'IKE-GROUP'
set vpn ipsec site-to-site peer PEER2 local-address '10.0.1.2'
set vpn ipsec site-to-site peer PEER2 remote-address '10.0.2.2'
set vpn ipsec site-to-site peer PEER2 tunnel 0 local prefix '192.168.0.0/24'
set vpn ipsec site-to-site peer PEER2 tunnel 0 remote prefix '192.168.1.0/24'


# PEER2
set interfaces dummy dum0 address '192.168.1.1/32'
set interfaces ethernet eth0 address '10.0.2.2/30'
set protocols static route 0.0.0.0/0 next-hop 10.0.2.1
set vpn ipsec authentication psk AUTH-PSK id '10.0.1.2'
set vpn ipsec authentication psk AUTH-PSK id '10.0.2.2'
set vpn ipsec authentication psk AUTH-PSK secret 'test'
set vpn ipsec esp-group ESP-GRPOUP lifetime '3600'
set vpn ipsec esp-group ESP-GRPOUP proposal 10 encryption 'aes256'
set vpn ipsec esp-group ESP-GRPOUP proposal 10 hash 'sha1'
set vpn ipsec ike-group IKE-GROUP close-action 'none'
set vpn ipsec ike-group IKE-GROUP dead-peer-detection action 'clear'
set vpn ipsec ike-group IKE-GROUP dead-peer-detection interval '30'
set vpn ipsec ike-group IKE-GROUP dead-peer-detection timeout '120'
set vpn ipsec ike-group IKE-GROUP key-exchange 'ikev1'
set vpn ipsec ike-group IKE-GROUP lifetime '28800'
set vpn ipsec ike-group IKE-GROUP proposal 10 dh-group '14'
set vpn ipsec ike-group IKE-GROUP proposal 10 encryption 'aes256'
set vpn ipsec ike-group IKE-GROUP proposal 10 hash 'sha1'
set vpn ipsec interface 'eth0'
set vpn ipsec site-to-site peer PEER1 authentication local-id '10.0.2.2'
set vpn ipsec site-to-site peer PEER1 authentication mode 'pre-shared-secret'
set vpn ipsec site-to-site peer PEER1 authentication remote-id '10.0.1.2'
set vpn ipsec site-to-site peer PEER1 connection-type 'respond'
set vpn ipsec site-to-site peer PEER1 default-esp-group 'ESP-GRPOUP'
set vpn ipsec site-to-site peer PEER1 ike-group 'IKE-GROUP'
set vpn ipsec site-to-site peer PEER1 local-address '10.0.2.2'
set vpn ipsec site-to-site peer PEER1 remote-address '10.0.1.2'
set vpn ipsec site-to-site peer PEER1 tunnel 0 local prefix '192.168.1.0/24'
set vpn ipsec site-to-site peer PEER1 tunnel 0 remote prefix '192.168.0.0/24'

Show status of policy-based IPsec VPN setup:

vyos@PEER2:~$ show vpn ike sa
Peer ID / IP                            Local ID / IP
------------                            -------------
10.0.1.2 10.0.1.2                       10.0.2.2 10.0.2.2

    State  IKEVer  Encrypt      Hash          D-H Group      NAT-T  A-Time  L-Time
    -----  ------  -------      ----          ---------      -----  ------  ------
    up     IKEv1   AES_CBC_256  HMAC_SHA1_96  MODP_2048      no     1254    25633


vyos@srv-gw0:~$ show vpn ipsec sa
Connection      State    Uptime    Bytes In/Out    Packets In/Out    Remote address    Remote ID    Proposal
--------------  -------  --------  --------------  ----------------  ----------------  -----------  ----------------------------------
PEER1-tunnel-0  up       20m42s    0B/0B           0/0               10.0.1.2          10.0.1.2     AES_CBC_256/HMAC_SHA1_96/MODP_2048

vyos@PEER2:~$ show vpn ipsec connections
Connection      State    Type    Remote address    Local TS        Remote TS       Local id    Remote id    Proposal
--------------  -------  ------  ----------------  --------------  --------------  ----------  -----------  ----------------------------------
PEER1           up       IKEv1   10.0.1.2          -               -               10.0.2.2    10.0.1.2     AES_CBC/256/HMAC_SHA1_96/MODP_2048
PEER1-tunnel-0  up       IPsec   10.0.1.2          192.168.1.0/24  192.168.0.0/24  10.0.2.2    10.0.1.2     AES_CBC/256/HMAC_SHA1_96/MODP_2048

If there is SNAT rules on eth0, need to add exclude rule

# PEER1 side
set nat source rule 10 destination address '192.168.1.0/24'
set nat source rule 10 'exclude'
set nat source rule 10 outbound-interface name 'eth0'
set nat source rule 10 source address '192.168.0.0/24'

# PEER2 side
set nat source rule 10 destination address '192.168.0.0/24'
set nat source rule 10 'exclude'
set nat source rule 10 outbound-interface name 'eth0'
set nat source rule 10 source address '192.168.1.0/24'

Route-Based VPN Example

PEER1:

WAN interface on eth0
eth0 interface IP: 10.0.1.2/30
‘vti0’ interface IP: 10.100.100.1/30
dum0 interface IP: 192.168.0.1/24 (for testing purposes)
Role: Initiator

PEER2:

WAN interface on eth0
eth0 interface IP: 10.0.2.2/30
‘vti0’ interface IP: 10.100.100.2/30
dum0 interface IP: 192.168.1.0/24 (for testing purposes)
Role: Responder

# PEER1
set interfaces dummy dum0 address '192.168.0.1/32'
set interfaces ethernet eth0 address '10.0.1.2/30'
set interfaces vti vti0 address '10.100.100.1/30'
set protocols static route 0.0.0.0/0 next-hop 10.0.1.1
set protocols static route 192.168.1.0/24 next-hop 10.100.100.2
set vpn ipsec authentication psk AUTH-PSK id '10.0.1.2'
set vpn ipsec authentication psk AUTH-PSK id '10.0.2.2'
set vpn ipsec authentication psk AUTH-PSK secret 'test'
set vpn ipsec esp-group ESP-GRPOUP lifetime '3600'
set vpn ipsec esp-group ESP-GRPOUP proposal 10 encryption 'aes256'
set vpn ipsec esp-group ESP-GRPOUP proposal 10 hash 'sha1'
set vpn ipsec ike-group IKE-GROUP close-action 'start'
set vpn ipsec ike-group IKE-GROUP dead-peer-detection action 'restart'
set vpn ipsec ike-group IKE-GROUP dead-peer-detection interval '30'
set vpn ipsec ike-group IKE-GROUP key-exchange 'ikev2'
set vpn ipsec ike-group IKE-GROUP lifetime  '28800'
set vpn ipsec ike-group IKE-GROUP proposal 10 dh-group '14'
set vpn ipsec ike-group IKE-GROUP proposal 10 encryption 'aes256'
set vpn ipsec ike-group IKE-GROUP proposal 10 hash 'sha1'
set vpn ipsec interface 'eth0'
set vpn ipsec options disable-route-autoinstall
set vpn ipsec site-to-site peer PEER2 authentication local-id '10.0.1.2'
set vpn ipsec site-to-site peer PEER2 authentication mode 'pre-shared-secret'
set vpn ipsec site-to-site peer PEER2 authentication remote-id '10.0.2.2'
set vpn ipsec site-to-site peer PEER2 connection-type 'initiate'
set vpn ipsec site-to-site peer PEER2 default-esp-group 'ESP-GRPOUP'
set vpn ipsec site-to-site peer PEER2 ike-group 'IKE-GROUP'
set vpn ipsec site-to-site peer PEER2 local-address '10.0.1.2'
set vpn ipsec site-to-site peer PEER2 remote-address '10.0.2.2'
set vpn ipsec site-to-site peer PEER2 vti bind 'vti0'


# PEER2
set interfaces dummy dum0 address '192.168.1.1/32'
set interfaces ethernet eth0 address '10.0.2.2/30'
set interfaces vti vti0 address '10.100.100.2/30'
set protocols static route 0.0.0.0/0 next-hop 10.0.2.1
set protocols static route 192.168.0.0/24 next-hop 10.100.100.1
set vpn ipsec authentication psk AUTH-PSK id '10.0.1.2'
set vpn ipsec authentication psk AUTH-PSK id '10.0.2.2'
set vpn ipsec authentication psk AUTH-PSK secret 'test'
set vpn ipsec esp-group ESP-GRPOUP lifetime '3600'
set vpn ipsec esp-group ESP-GRPOUP proposal 10 encryption 'aes256'
set vpn ipsec esp-group ESP-GRPOUP proposal 10 hash 'sha1'
set vpn ipsec ike-group IKE-GROUP close-action 'none'
set vpn ipsec ike-group IKE-GROUP dead-peer-detection action 'clear'
set vpn ipsec ike-group IKE-GROUP dead-peer-detection interval '30'
set vpn ipsec ike-group IKE-GROUP key-exchange 'ikev2'
set vpn ipsec ike-group IKE-GROUP lifetime '28800'
set vpn ipsec ike-group IKE-GROUP proposal 10 dh-group '14'
set vpn ipsec ike-group IKE-GROUP proposal 10 encryption 'aes256'
set vpn ipsec ike-group IKE-GROUP proposal 10 hash 'sha1'
set vpn ipsec interface 'eth0'
set vpn ipsec options disable-route-autoinstall
set vpn ipsec site-to-site peer PEER1 authentication local-id '10.0.2.2'
set vpn ipsec site-to-site peer PEER1 authentication mode 'pre-shared-secret'
set vpn ipsec site-to-site peer PEER1 authentication remote-id '10.0.1.2'
set vpn ipsec site-to-site peer PEER1 connection-type 'respond'
set vpn ipsec site-to-site peer PEER1 default-esp-group 'ESP-GRPOUP'
set vpn ipsec site-to-site peer PEER1 ike-group 'IKE-GROUP'
set vpn ipsec site-to-site peer PEER1 local-address '10.0.2.2'
set vpn ipsec site-to-site peer PEER1 remote-address '10.0.1.2'
set vpn ipsec site-to-site peer PEER1 vti bind 'vti0'

Show status of route-based IPsec VPN setup:

vyos@PEER2:~$ show vpn ike sa
Peer ID / IP                            Local ID / IP
------------                            -------------
10.0.1.2 10.0.1.2                       10.0.2.2 10.0.2.2

    State  IKEVer  Encrypt      Hash          D-H Group      NAT-T  A-Time  L-Time
    -----  ------  -------      ----          ---------      -----  ------  ------
    up     IKEv2   AES_CBC_256  HMAC_SHA1_96  MODP_2048      no     404     27650

vyos@PEER2:~$ show vpn ipsec sa
Connection    State    Uptime    Bytes In/Out    Packets In/Out    Remote address    Remote ID    Proposal
------------  -------  --------  --------------  ----------------  ----------------  -----------  ----------------------------------
PEER1-vti     up       3m28s     0B/0B           0/0               10.0.1.2          10.0.1.2     AES_CBC_256/HMAC_SHA1_96/MODP_2048

vyos@PEER2:~$ show vpn ipsec connections
Connection    State    Type    Remote address    Local TS    Remote TS    Local id    Remote id    Proposal
------------  -------  ------  ----------------  ----------  -----------  ----------  -----------  ----------------------------------
PEER1         up       IKEv2   10.0.1.2          -           -            10.0.2.2    10.0.1.2     AES_CBC/256/HMAC_SHA1_96/MODP_2048
PEER1-vti     up       IPsec   10.0.1.2          0.0.0.0/0   0.0.0.0/0    10.0.2.2    10.0.1.2     AES_CBC/256/HMAC_SHA1_96/MODP_2048
                                               ::/0        ::/0
